DR- 940 SERIES |
|
 |
 |
|

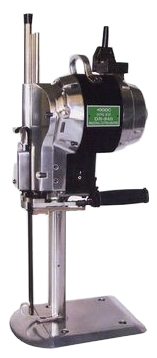

DING RAY - Straight Cutting Machine
|
|
|
- DR-940 Single Speed
- DR-940-DS Dual Speed
- DR-940-HD Heavy Duty
|
|
|
Blade Size: 8" , 9" , 10" , 11.5" , 13" |
| FEATURES: |
|
|
|
|
|
Equipped with an automatic knife sharpening system, the DR-940 series use the newest and
most advanced technology to ensure the finest cutting quality.
|
|
|
|
Automatic oil lubrication and sharpening device to be handled easily and safety.
|
|
|
|
Square, low profile base plate with smooth running rollers
|
|
|
| APPLICATION: |
|
|
|
|
Blade Size |
Cutting Capacity |
Suggestion |
|
8" |
6.5" |
common plain weave cloth |
|
9" |
7.5" |
Knitting & plain weave cloth |
|
10" |
8.5" |
common knitting cloth |
| |
11.5" |
10" |
thick knitting cloth |
| |
13" |
11.5" |
foam |
|
| SPECIFICATIONS: |
|
|
|
|
Model |
DR-940 |
DR-940-DS |
DR-940-HD |
|
Blade Size |
8" , 9" , 10" , 11.5" , 13" |
|
Rated Power |
550W |
550W |
750W |
|
Rated Voltages |
1 Phase: 110V or 220V
3 Phase: 220V or 380V |
|
Speed |
50Hz: 2,800
60Hz: 3,460 |
50Hz: 1,400 / 2,800
60Hz: 1,700 / 3,460 |
50Hz: 2,800
60Hz: 3,460 |
|
Stroke |
1.5" |
|
Standard Blade |
High Speed Steel |
|
Optional Blades Available |
Carbon Steel or Wave Edge |
| |
Belts Available |
Fine #120, Medium #100, Coarse #80 |
| |
Machine Weight |
17 kgs |
| |
Packing Weight |
N.W.: 20 kgs / G.W.: 21 kgs |
|
Meas. |
79 x 40 x 33 (cm) / 0.1 CBM |
|
