CK- 767 |
|
 |
|

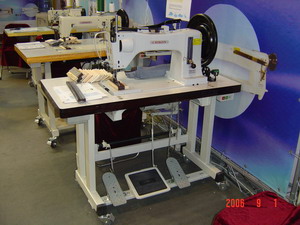

Extra Heavy Duty, Long Arm, Upper & Lower Feed, Lockstitch Sewing Machine
|
|
|
This machine is equipped with semi-rotary large capacity shuttle hook,
suitable for sewing extra heavy weight materials, such as safety and
logging belts, luggage, cargo slings, buffing wheels, harnesses,
construction barriers, parachutes, balloons and book binding.
|
|
| FEATURES: |
|
|
|
|
|
With upper & lower feed, the machine can sew accurately and easily
several sheets of heavy weight materials piled up together.
|
|
|
|

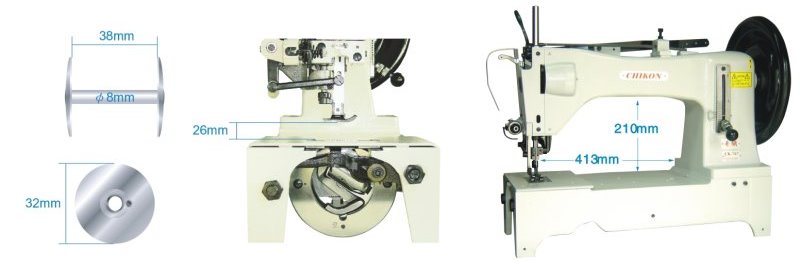

The lifting amount of presser foot is as high as 26mm,
suitable for stitching the extra heavy-weight materials.
|
|
|
|
The machine is provided with a free space measuring 413mm wide. It allows
the operator to handle a large sewing product with ease.
|
|
|
|
Applied the semi-rotary large shuttle hook & bobbin, could reduce the
frequency of changing the bobbin thread and increase the sewing efficiency.
|
|
|
|
32mm high presser feed lift also available on request (CK-767-HF).
|
|
|
|
 |
| SPECIFICATIONS: |
|
|
|
|
Max. Sewing Speed |
700 s.p.m. |
Bed Size |
654 x 258 mm |
|
Max. Stitch Length |
15mm |
Needle |
Schmetz 1000 (#250) |
|
Lift of the Presser Foot |
26mm (CK-767)
32mm (CK-767-HF) |
Thread |
#0 ~ #00 |
|
Alternating vertical movement |
5 ~ 7mm |
Motor |
Clutch Motor, 3-Phase, 1 HP, 4P |
|
Needle Bar Stroke |
66mm |
N.W. / G.W. |
126 / 141 KGS |
|
Working Space |
413mm |
Meas. |
0.28 CBM |
|

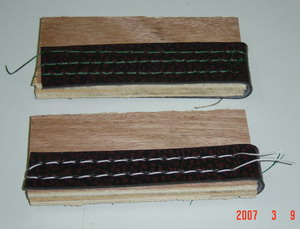

| SEWING SAMPLES: |
|
|
|
|
