CK- 471 |
|
 |
|
Long Arm, Cylinder Bed, Upper & Lower Feed, Extra Heavy Duty, Lockstitch Sewing Machine
|
|
|
This machine is equipped with semi-rotary large capacity shuttle hook, suitable for sewing heavy
weight materials. Used for harness, tack, saddlery, canvas, sport equipment, footwear. Such products
as: safety belts, golf bags, luggage, tarpaulins, tents, book bindings, orthopedic appliances,
boots, holsters, knife sheath, purses, etc.
|
|
|
FEATURES: |
|
|
|
|
|
With upper & lower feed, the machine can sew accurately and easily several
sheets of heavy weight materials piled up together.
|
|
|
|
The Upper feed amount can be increased or decreased by 30% with respect to
the lower feed amount.
|
|
|
|
The lifting amount of presser foot is as high as 20mm, suitable for stitching
the extra heavy-weight materials.
|
|
|
|

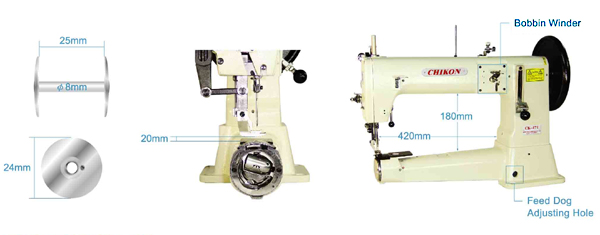

The machine is provided with a free space measuring 420mm wide. It allows
the operator to handle a large sewing product with ease.
|
|
|
|
Applied the semi-rotary large shuttle hook bobbin, could reduce the frequency of
changing the bobbin thread and increase the sewing efficiency
|
|
|
|
The machine incorporates a built in bobbin winder, which can be reached with ease during sewing.
|
|
|
|
 |
|
SPECIFICATIONS: |
|
|
|
|
Max. Sewing Speed |
800 s.p.m. |
Needle |
Schmetz 794 (DYx3) #26 |
|
Max. Stitch Length |
15mm |
Needle System |
#21 ~ #28 |
|
Lift of the Presser Foot |
12mm by Hand
20mm by Pedal |
Thread |
#0 ~ #8 |
|
Diameter of Cylinder-bed |
81mm |
Motor |
Clutch Motor, 3/4HP, 4P |
|
Needle Bar Stroke |
56mm |
N.W. / G.W. |
63 / 76 KGS |
|
Working Space |
420mm |
Meas. |
0.19 CBM |
|
