CK- 400 |
|
 |
|
Cylinder-Bed, Unison-Feed, Extra Heavy Duty, Lockstitch Sewing Machine
|
|
|
This machine is equipped with unison feed mechanism and semi-rotary large capacity
shuttle hook, suitable for sewing heavy weight materials. Used for harness, tack,
saddlery, canvas, sport equipment, footwear. Such products as: safety belts, golf bags,
luggage tarpaulins, tents, book bindings, orthopedic appliances, boots, holsters,
knife sheath, purses, etc.
|
|
|
FEATURES: |
|
|
|
|
|
With powerful unison feed, the machine can sew accurately and
easily several sheets of heavy weight materials piled up together.
|
|
|
|

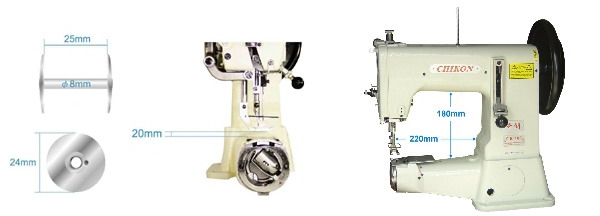

The lifting amount of presser foot is as high as 20mm, suitable
for stitching the extra heavy-weight materials.
|
|
|
|
Applied the semi-rotary large shuttle hook & bobbin, could reduce
the frequency of changing the bobbin thread a built in bobbin winder,
which can be reached with ease during sewing.
|
|
|
|
 |
|
SPECIFICATIONS: |
|
|
|
|
Max. Sewing Speed |
1,000 s.p.m. |
Needle |
Schmetz 794 (DYx3) #26 |
|
Max. Stitch Length |
11mm |
Needle System |
#21 ~ #28 |
|
Lift of the Presser Foot |
12mm by Hand
20mm by Pedal |
Thread |
#0 ~ #8 |
|
Diameter of Cylinder-bed |
81mm |
Motor |
Clutch Motor, 3/4HP, 4P |
|
Needle Bar Stroke |
56mm |
N.W. / G.W. |
41 / 54 KGS |
|
Working Space |
220mm |
Meas. |
0.152 CBM |
|
