CK- 305 SERIES |
|
 |
|
Top & Bottom Feed, ZigZag Sewing Machine (Large Hook) for Heavy Material
|
|
|
- CK-305 10" Working Space
- CK-305L 20" Working Space
- CK-305XL 30" Working Space
|
|
| APPLICATION: |
|
|
|
|
|
Suitable for Shoemaking, Leather Bags, Diving-Suits, Straw Mats, Tents.
|
|
|
CK-305 |
CK-305-3 |
CK-305-4 |
 |
|

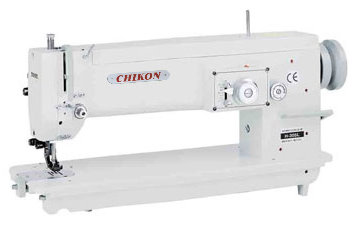

CK-305L |
CK-305L-3 |
CK-305L-4 |
|

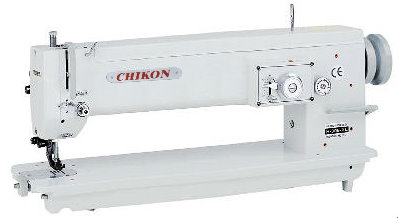

CK-305XL |
CK-305XL-3 |
CK-305XL-4 |
|
 |
 |
 |
|
2-Point |
3-Point |
4-Point |

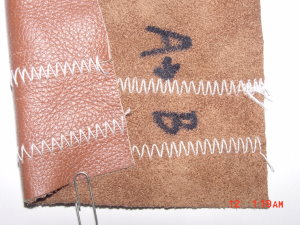

CK-305 Sewing Sample |
|
 |
 |
| CK-305L |
CK-305XL |
|
|
| SPECIFICATIONS: |
|
|
|
|
Max. Sewing Speed |
2,500 s.p.m. |
Number of Needle |
1 |
|
Max. Stitch Length |
5mm |
Needle to by used |
DP x 17 |
|
Stitch width |
10mm |
Needle System |
#18 ~ #22 |
|
Height of presser foot |
10mm |
Motor |
Clutch Motor, 1/2HP, 4P |
|
