CK- 1560 |
|
 |
|
Double-needle, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook (For Extra Heavy Materials)
|
|
|
This machine is equipped with unison feed mechanism and vertical-axis
double-capacity hook. It is applicable to an extended range of heavy materials
for industrial use, such as cargo handling belts and containers, as well as
those for general use, such as car seats, sofas and bags, etc.
|
|
| FEATURES: |
|
|
|
|
|
With the adoption of a new rectangular feed mechanism, an alternating vertical movement
mechanism, and a unison-feed mechanism, the machine can feed heavy materials powerfully
and smoothly. Well tensed seams are consistently produced without pitch errors.
|
|
|
|
The maximum stitch length is 9mm. The complete rectangular feed locus enables accurate
feed of extra heavy materials while preventing stitch gathering.
|
|
|
|
With its sufficient needle bar stroke of 38mm and long 190R needle, the machine
supports the sewing of extra heavy materials.
|
|
|
|
Automatic lubricating mechanism improves maintainability. The sub oil pan
and double filter prevent dust from entering the oil.
|
|
|
|

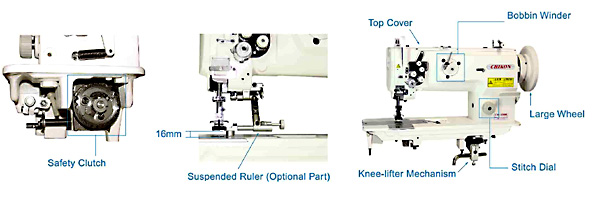

The machine is equipped as standard with a safety clutch for
preventing hook breakage. Reset work can be done simply by pressing a button.
|
|
|
|
 |
| SPECIFICATIONS: |
|
|
|
|
Max. Sewing Speed |
2,500 s.p.m. |
Needle |
Organ DPx17 #23 |
|
Max. Stitch Length |
9mm |
Needle System |
#20 ~ #25 |
|
Lift of the Presser Foot |
9mm by Hand
16mm by Pedal |
Thread |
#20~#1, B69~B207, Nm=40/3~8/3 |
|
Alternating Vertical Movement |
2.5 ~ 6.5mm |
Lubrication |
Automatic |
|
Needle Gauge |
4.8mm,6.4mm,7.9mm,
9.5mm,12.7mm
(3/16,1/4,5/16,3/8,1/2) |
Motor |
Clutch Motor, 3-Phase, 1/2HP, 4P |
|
Needle Bar Stroke |
38mm |
N.W. / G.W. |
49 / 59 KGS |
|
Working Space |
255mm |
Meas. |
0.19 CBM |
|
