CK- 1560-25 SERIES |
|
 |
|
Double Needle, Long Arm (25"), Unison-Feed, Lockstitch Machine with Vertical-axis Large Hook (automatic lubricating mechanism) |
|
- CK-1560-25 for heavy materials
- CK-1560-25-T for thick thread (#0)
- CK-1560-25-FL with pneumatic auto-lifter
- CK-1560-25-BT with automatic backtrack and auto-lifter
|
| FEATURES: |
|
|
|
|
|

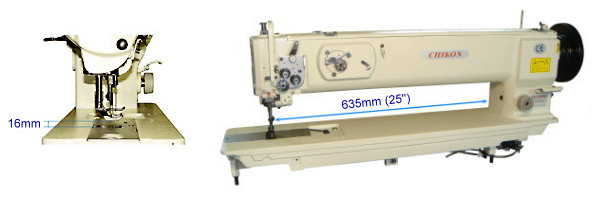

The machine is provided with 635mm (25") of working space.
It is ideally suited to sewing processes require a larger space under the arm.
Typical examples are the sewing of canvases and furniture.
|
|
|
|
With the adoption of a new rectangular feed mechanism, an alternating vertical movement
mechanism, and a unison-feed mechanism, the machine can feed heavy materials powerfully
and smoothly. Well tensed seams are consistently produced without pitch errors.
|
|
|
|
The maximum stitch length is 9mm. The complete rectangular feed locus enables accurate
feed of extra heavy materials while preventing stitch gathering.
|
|
|
|
With its sufficient needle bar stroke of 38mm and long 190R needle, the machine
supports the sewing of extra heavy materials.
|
|
|
|
The machine is equipped as standard with a safety clutch for
preventing hook breakage. Reset work can be done simply by pressing a button.
|
|
|
|
 |
| SPECIFICATIONS: |
|
|
|
|
Max. Sewing Speed |
1,800 s.p.m. |
Needle |
Organ DPx17 #23 |
|
Max. Stitch Length |
9mm |
Needle System |
#20 ~ #25 |
|
Lift of the Presser Foot |
9mm by Hand
16mm by Pedal |
Thread |
#20 ~ #1 |
|
Alternating Vertical Movement |
2.5 ~ 6.5mm |
Lubrication |
Automatic
|
|
Needle Gauge |
4.8mm,6.4mm,7.9mm,
9.5mm,12.7mm
(3/16,1/4,5/16,3/8,1/2) |
Motor |
Clutch Motor, 1/2HP, 4P |
|
Needle Bar Stroke |
38mm |
N.W. / G.W. |
78 / 88 KGS |
|
Working Space |
635mm |
Meas. |
0.28 CBM |
|
