CK- 1541 SERIES |
|
 |
|
Single-needle, Unison-feed, Lockstitch Machine with Horizontal-axis Large Hook |
|
- CK-1541 without safety mechanism

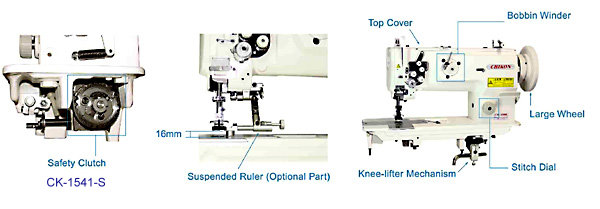

- CK-1541-S with safety mechanism
- CK-1541-FL with pneumatic auto-lifter
- CK-1541-BT with automatic backtrack and auto-lifter
|
| FEATURES: |
|
|
|
|
|
With its large needle bar stroke, higher presser foot lift, and newly adopted
double-tension mechanism, the machine offers excellent sewing capabilities and responsiveness.
|
|
|
|
With the adoption of a new rectangular feed mechanism, an alternating vertical movement
mechanism, and a unison-feed mechanism, the machine can feed heavy materials powerfully
and smoothly. Well tensed seams are consistently produced without pitch errors.
|
|
|
|
The maximum stitch length is 9mm. The complete rectangular feed locus enables accurate
feed of heavy materials while preventing stitch gathering.
|
|
|
|
With its sufficient needle bar stroke of 36mm and long 190R needle,
the machine supports the sewing of heavy materials.
|
|
|
|
The machine comes with an extra large steel hand-wheel with a diameter as large as 175mm.
|
|
|
|
 |
| SPECIFICATIONS: |
|
|
|
|
Max. Sewing Speed |
2,500 s.p.m. |
Needle |
Organ DPx17 #23 |
|
Max. Stitch Length |
9mm |
Needle System |
#20 ~ #25 |
|
Lift of the Presser Foot |
9mm by Hand
16mm by Pedal |
Thread |
#30 ~ #5 |
|
Alternating Vertical Movement |
2.5 ~ 6.5mm |
Motor |
Clutch Motor, 1/2HP, 4P |
|
Needle Bar Stroke |
36mm |
N.W. / G.W. |
42 / 51 KGS |
|
Working Space |
264mm |
Meas. |
0.19 CBM |
|
