This machine is applicable to an extended range of heavy materials
for industrial use, such as cargo handling belts and containers, as well as those
for general use, such as car seats, sofas and bags, etc.
|
|
|
|
With the adoption of a new rectangular feed mechanism, an alternating vertical movement
mechanism, and a unison-feed mechanism, the machine can feed heavy materials powerfully
and smoothly. Well tensed seams are consistently produced without pitch errors.
|
|
|
|
The maximum stitch length is 9mm. The complete rectangular feed locus enables accurate
feed of extra heavy materials while preventing stitch gathering.
|
|
|
|
The machine has adopted a dual-tension mechanism, with which the machine can
support high-tension sewing with thick thread. This means that the machine
produces seams of excellent quality on a broader range of materials,
extending from light- to heavy-weight.
|
|
|
|
With its sufficient needle bar stroke of 38mm and long 190R needle,
the machine supports the sewing of extra heavy materials.
|
|
|
|

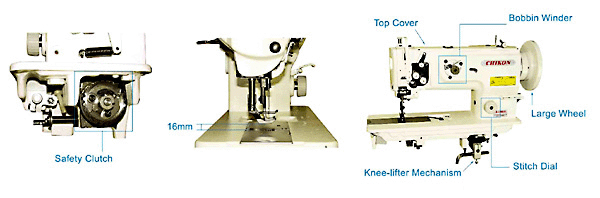

The machine comes with an extra large steel hand-wheel with a diameter as large as 175mm.
|
|
|
|
The machine is equipped as standard with a safety clutch for
preventing hook breakage. Reset work can be done simply by pressing a button.
|
|
CK- 1508 SERIES
